Littelfuse 6.3 x 32mm Panel Mount Fuse Holder

CAD $7.98
Part Number:
03420004HXP
Stock Number:
7006
Condition:
New
Weight:
0.05 LBS
Shipping:
Calculated at Checkout

Description

Description

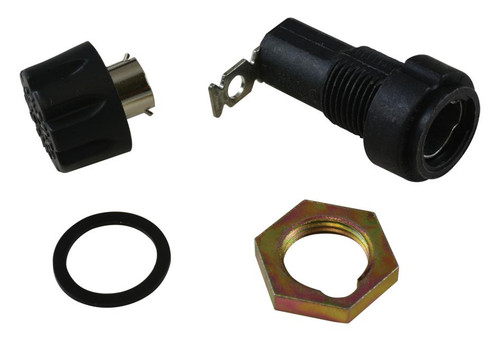

The 03420004HXP is a robust, panel-mount fuse holder engineered to accommodate standard ¼" x 1¼" cartridge fuses such as 3AG and SFE-20 types. With a current rating of 20 amps and support for up to 250 volts AC, it’s designed for reliable performance in industrial and commercial environments. The holder features brass contacts with a tin finish for enhanced conductivity and corrosion resistance, while its enclosed body and bayonet-style knob provide secure fuse retention and effortless fuse replacement.

Features

  •  Current Rating: 20A
  •  Voltage Rating: 250V AC
  •  Fuse Compatibility: 3AG, 3AB, SFE-20 (¼" x 1¼" or 6.35mm x 32mm cartridge fuses)
  •  Mounting Type: Panel mount for secure installation
  •  Termination Style: Solder lug terminals
  •  Number of Circuits: Single fuse circuit
  •  Body Style: Enclosed holder with bayonet-style knob for easy fuse access
  •  Contact Material: Brass
  •  Contact Finish: Tin-plated for corrosion resistance
  •  Housing Material: Black thermoplastic (UL 94V-0 rated)
  •  Operating Temperature Range: –40°C to +85°C
  •  RoHS 3 Compliant
  •  REACH Status: Unaffected
  •  UL Recognized & CSA Certified

Resources

Manufacturer's Website

Data Sheet
