The Leviton 1374-B01 is a compact, commercial-grade snap-in receptacle designed for residential and light industrial applications. It features a two-pole, three-wire configuration with a 15A, 125V rating, conforming to the NEMA 5-15R standard. The receptacle is housed in a black thermoplastic body and includes pre-attached 14 AWG leads—two for line and neutral, and one green for ground—making installation quick and straightforward. Its snap-in mounting design allows for easy panel integration without the need for screws, and the compact square form factor fits neatly into tight spaces
Features
- 15A, 125V rating for standard residential and light industrial use
- Two-pole, three-wire configuration (NEMA 5-15R)
- Snap-in mounting design for quick panel installation without screws
- Pre-attached 14 AWG leads: black (hot), white (neutral), and green (ground)
- Thermoplastic housing in black for durability and corrosion resistance
- Compact square form factor fits tight spaces easily
- Operating temperature: -40°C to 60°C (-40°F to 140°F)
- UL Listed, CSA Certified, NOM Approved
- Flammability rating: UL94 V2

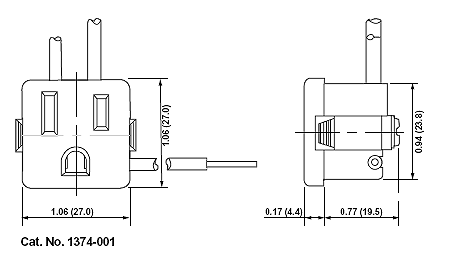

- Dimensions: approximately 1.06 in (W) × 0.94 in (D) × 1.06 in (H)
- Ideal for flush-mounted outlets in appliances, panels, or enclosures
