Description
Description
The Leviton 2536 is a slimline fluorescent lampholder designed for single-pin T8 and T12 lamps in linear lighting applications. It features a pedestal-style body with a slide-on, lock-on plunger mechanism, allowing for secure and tool-free lamp installation. Rated for 660 watts at 1000 volts, it’s built with thermoset plastic for heat resistance and long-term durability. This lampholder includes Quickwire terminals that accept 18 AWG solid or tinned stranded wire, and its shunted design makes it compatible with many LED retrofit tubes that require shunted sockets.
Features
- Lamp Compatibility: Designed for single-pin T8 and T12 slimline fluorescent lamps, including 8-foot F96 types.
- Mounting Style: Pedestal-style body with slide-on, lock-on plunger mechanism for secure and tool-free lamp installation.
- Electrical Ratings: Supports up to 660 watts at 1000 volts, making it suitable for high-output lighting systems.
- Wiring: Equipped with Quickwire terminals that accept 18 AWG solid or tinned stranded wire for fast, reliable connections.
- Construction: Made from thermoset plastic for excellent heat resistance and long-term durability.
- Shunted Design: Internally shunted, making it compatible with many LED retrofit tubes that require shunted sockets.
- Certifications: UL and CSA listed, RoHS compliant, and suitable for indoor or properly enclosed outdoor use.

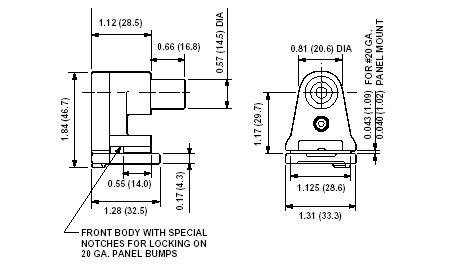

- Panel Mounting: Fits 20-gauge panels and standard 1.14" wide panel openings.
