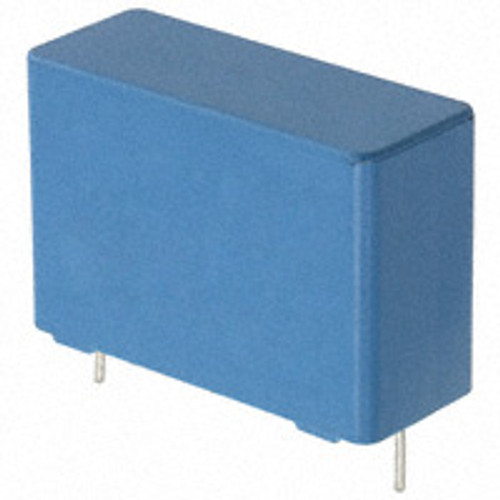

The B32924C3155M000 is a high-quality film capacitor manufactured by EPCOS (TDK Electronics), designed primarily for EMI and RFI suppression in electronic circuits. It features a capacitance of 1.5 µF with a ±20% tolerance, and supports 305 VAC and 630 VDC voltage ratings. Built with metallized polypropylene (PP) dielectric, it offers excellent stability and low loss characteristics over a wide temperature range of –40°C to +110°C. The capacitor comes in a radial leaded package with 27.5 mm lead spacing, making it suitable for through-hole mounting in safety-critical applications. It complies with X2 safety standards, ensuring reliable performance in line-to-neutral filtering scenarios.
Features
- Capacitance: 1.5 µF
- Tolerance: ±20%
- Voltage Rating (AC): 305 VAC
- Voltage Rating (DC): 630 VDC
- Dielectric Material: Metallized Polypropylene (PP)
- Safety Classification: X2 (for across-the-line applications)
- Operating Temperature Range: –40°C to +110°C
- Mounting Type: Through-hole
- Package Style: Radial
- Lead Spacing: 27.5 mm
- Dimensions: 31.5 mm (L) × 12.5 mm (W) × 21.5 mm (H)
- Termination Style: Straight PC pins
- Applications: EMI and RFI suppression
- Compliance: RoHS and REACH compliant
- Moisture Sensitivity Level: Not applicable
- Series: B3292*C/D – X2 Standard
