Description
Description

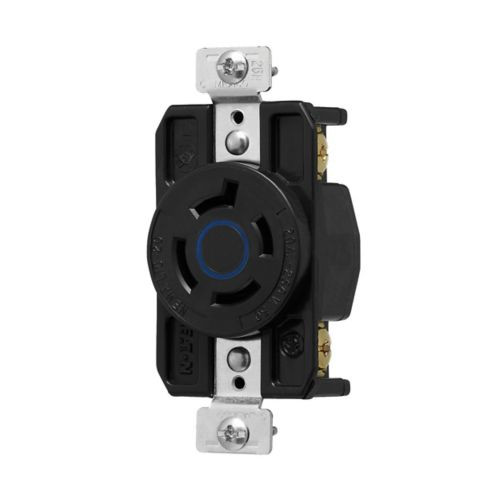

The Eaton Arrow Hart AHCL1520R is a heavy-duty, industrial-grade color-coded locking receptacle designed for demanding environments. It features a three-pole, four-wire configuration with a 20A, 250V, 3-phase rating, and supports wire sizes from #14 to #8 AWG. The receptacle is built with glass-filled nylon for enhanced durability and impact resistance, and its blue and black color coding helps with quick voltage identification. Its Ultra Grip design ensures secure handling during installation, while back and side wiring options offer flexibility for electricians.
Features
- 20A, 250V, 3-phase rating
- Three-pole, four-wire configuration (NEMA L15-20)
- Glass-filled nylon body and face for durability
- Blue and black color coding for voltage identification
- Ultra Grip design for secure plug retention
- One-piece brass contacts for strong electrical continuity
- Accepts wire sizes from #14 to #8 AWG
- Back and side wiring options
- Operating temperature: -40°C to 70°C (-40°F to 158°F)
- Dimensions: 1.62 in (L) × 1.06 in (W) × 3.64 in (H)
- UL Listed, CSA Certified, NOM Certified
